Steady as it goes and flows

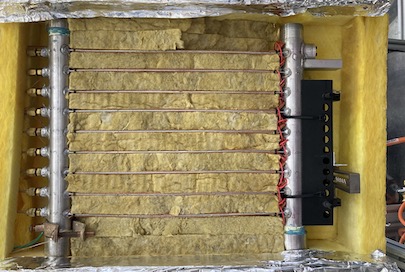

Oak Ridge National Laboratory researchers developed a device called a piezoelectric-driven magnetic actuator, or PEDMA, that can be inserted into the header of a microchannel heat exchanger to keep refrigerants flowing evenly and the HVAC unit running efficiently. Credit: ORNL, U.S. Dept. of Energy

Oak Ridge National Laboratory researchers demonstrated that microchannel heat exchangers in heating, ventilation and air conditioning units can keep refrigerants evenly and continually distributed by inserting a device called a piezoelectric-driven magnetic actuator, or PEDMA.

Heat exchangers are shells or pipes that use metal tubing to transfer heat from one place to another. In contrast, a microchannel exchanger uses a maze of smaller pathways, making it low weight and lower cost while providing superior performance. However, these small channels can cause refrigerant maldistribution, putting extra pressure on the compressor.

In a study, the team developed a prototype PEDMA insert consisting of 3D printed resin parts and small permanent magnets.

“The magnets work to actively change the geometry inside the exchanger once inserted into the equipment,” ORNL’s Joseph Rendall said. “Testing showed significant improvement of refrigerant flow. This represents a new method for controlling flow distribution in microchannel heat exchangers.”
